NAGA X8 Coaxial Multi-rotor Industrial Drone Heavy Load And Long Endurance
NAGA X8
| NAGA X8 PARAMETERS | ||
| Model No. | NAGA X8 | |
| Max. Symmetric Wheelbase | 820mm | |
| Material | Carbon fiber composite and Aircraft Aluminum | |

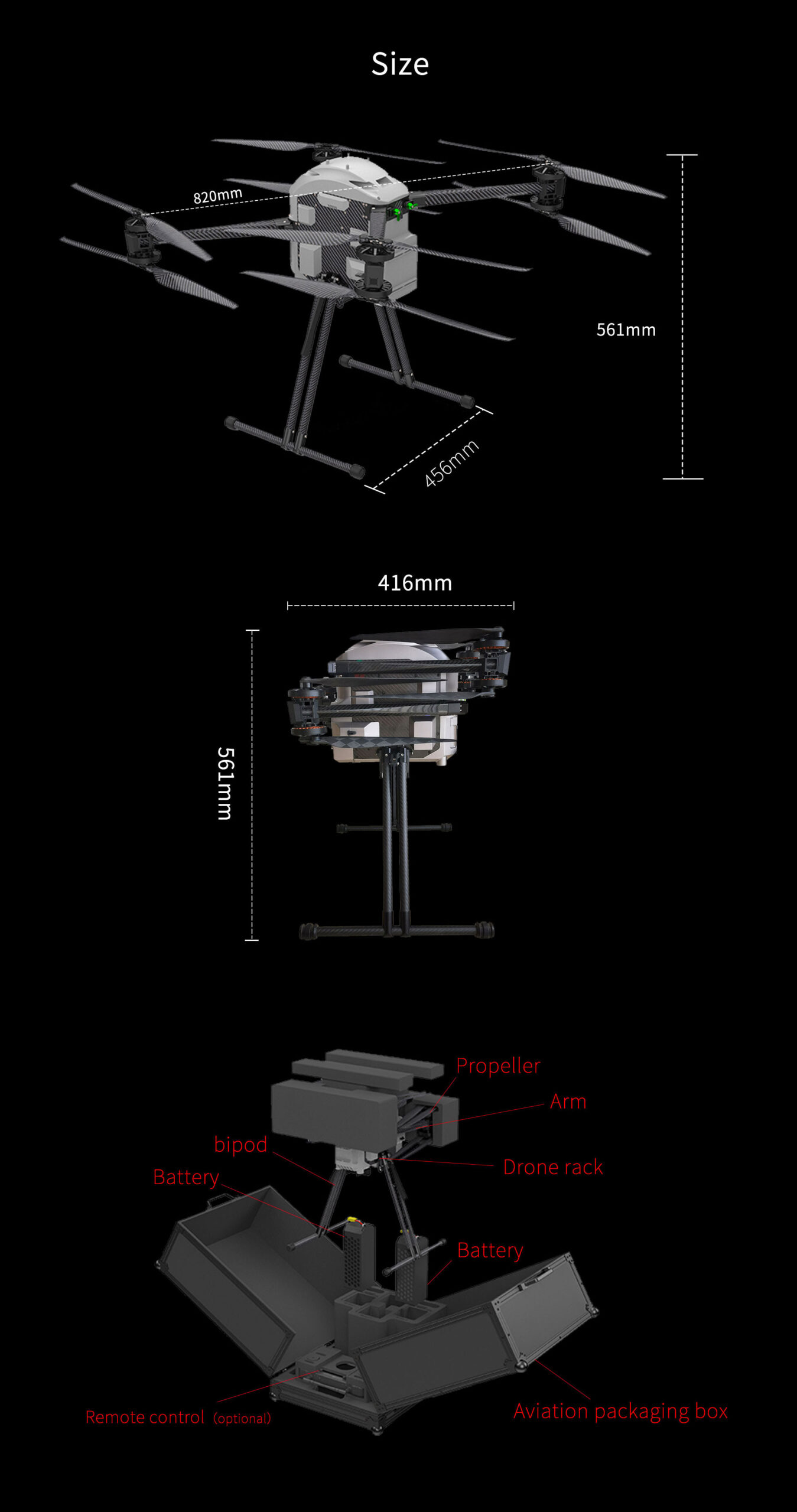

| Size | ≈650*645*492mm (Arms & landing gears Unfolded, Props removed.) ≈418*382*492 (Arm&folded, Props disassemble, Landing gear unfold.) |
|
| Weight | ≈ 3.9kg（excl. battery） ≈ 9.5kg（incl. battery *2 pcs） |
|
| Max. Loading Capacity | ≤ 8kg | |
| Max. Takeoff Weight | ≤ 18kg | |
| Endurance | ≤ 75min @ no payload ； ≤ 40 min @ 5kg payload ； ≤ 15 min @ 8kg payload； |
|
| Hovering Accuracy (with moderate or no wind) | vertical ±0.2m； horizontal ±0.1m | |
| Max. Angular Velocity | 150°/s | |
| Max. Pitch Angle | 25° | |
| Max. Ascent Speed | 2.5m/s | |
| Max. Descent Speed | 2m/s | |
| Max. Horizontal Speed | 20m/s | |
| Max. Flight Altitude | 5500m | |
| Max. Wind Speed Resistance | 14m/s | |
| Ingress Protection Rating | IP55 | |
| Operating Temperature | ﹣20℃ ~ +50℃ | |
| Battery Capacity | 14S，28800mAh | |
| Battery Weight | ≈3.1kg | |
| Battery Size | 240*90*77mm | |
| Notes: The size and weight may be changed according to customer’s personalized customization requirements. Please refer to the actual object. | ||
