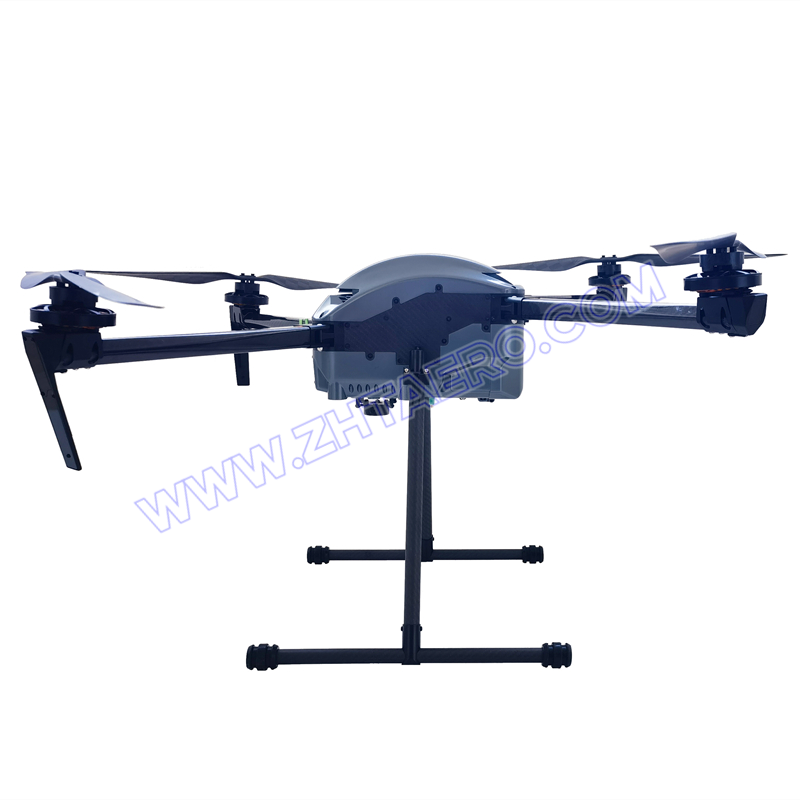

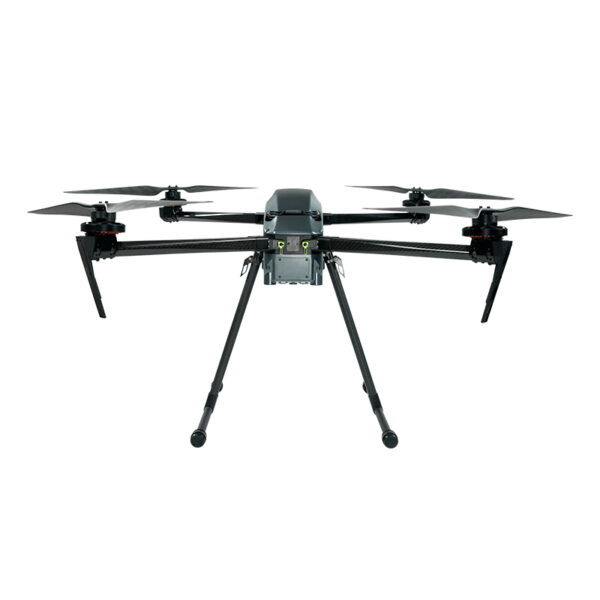

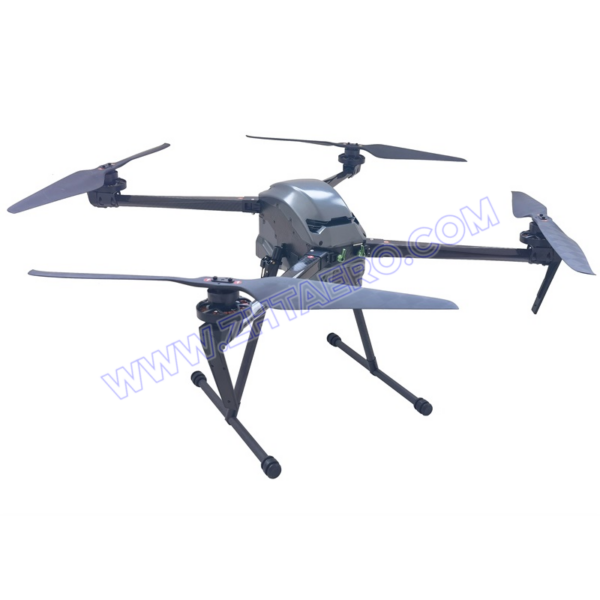

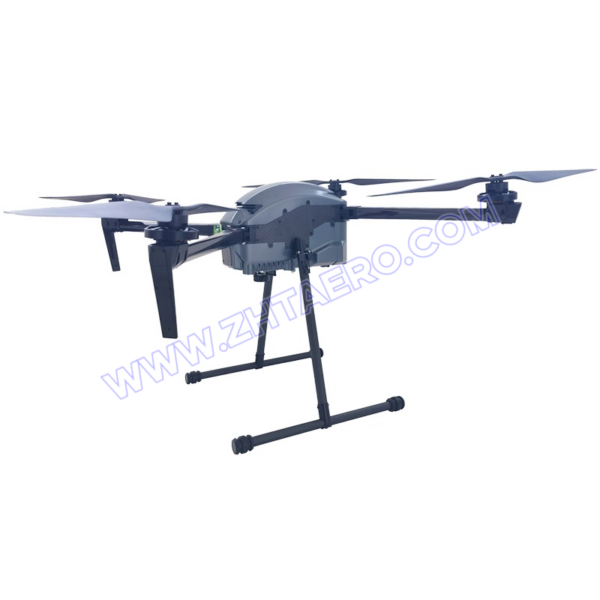

NAGA X4 Small Quadcopter Industrial Drone 90 Minutes Flight Time 3KG Loading Capacity
90 Minutes Flight Time;
3KG Load Capacity;
Good for Surveying & Mapping.
| NAGA X4 PARAMETER | ||
| Model No. | NAGA X4 | |
| Max. Symmetric Wheelbase | 815mm | |
| Material | Carbon fiber composite and Aircraft Aluminum | |
| Size | ≈960*960*455mm (Arms & landing gears Unfolded, Props removed.) ≈440*210*200 (Arm&folded, Props disassemble, Landing gear disassemble.) |
|
| Weight | ≈ 2.5kg（excl. battery） ； ≈ 5.3kg（incl. battery * 1 pcs） |
|
| Max. Loading Capacity | ≤ 3kg | |
| Max. Takeoff Weight | ≤ 8kg | |
| Endurance | ≤ 90min @ no payload ； ≤ 68 min @ 0.8kg payload； ≤ 45 min @ 2.5kg payload； |
|
| Hovering Accuracy (with moderate or no wind) | vertical ±0.2m； horizontal ±0.1m | |
| Max. Angular Velocity | 150°/s | |
| Max. Pitch Angle | 25° | |
| Max. Ascent Speed | 3m/s | |
| Max. Descent Speed | 2.5m/s | |
| Max. Horizontal Speed | 15m/s | |
| Max. Flight Altitude | 5500m | |
| Max. Wind Speed Resistance | 12m/s | |
| Ingress Protection Rating | IP55 | |
| Operating Temperature | ﹣20℃ ~ +50℃ | |

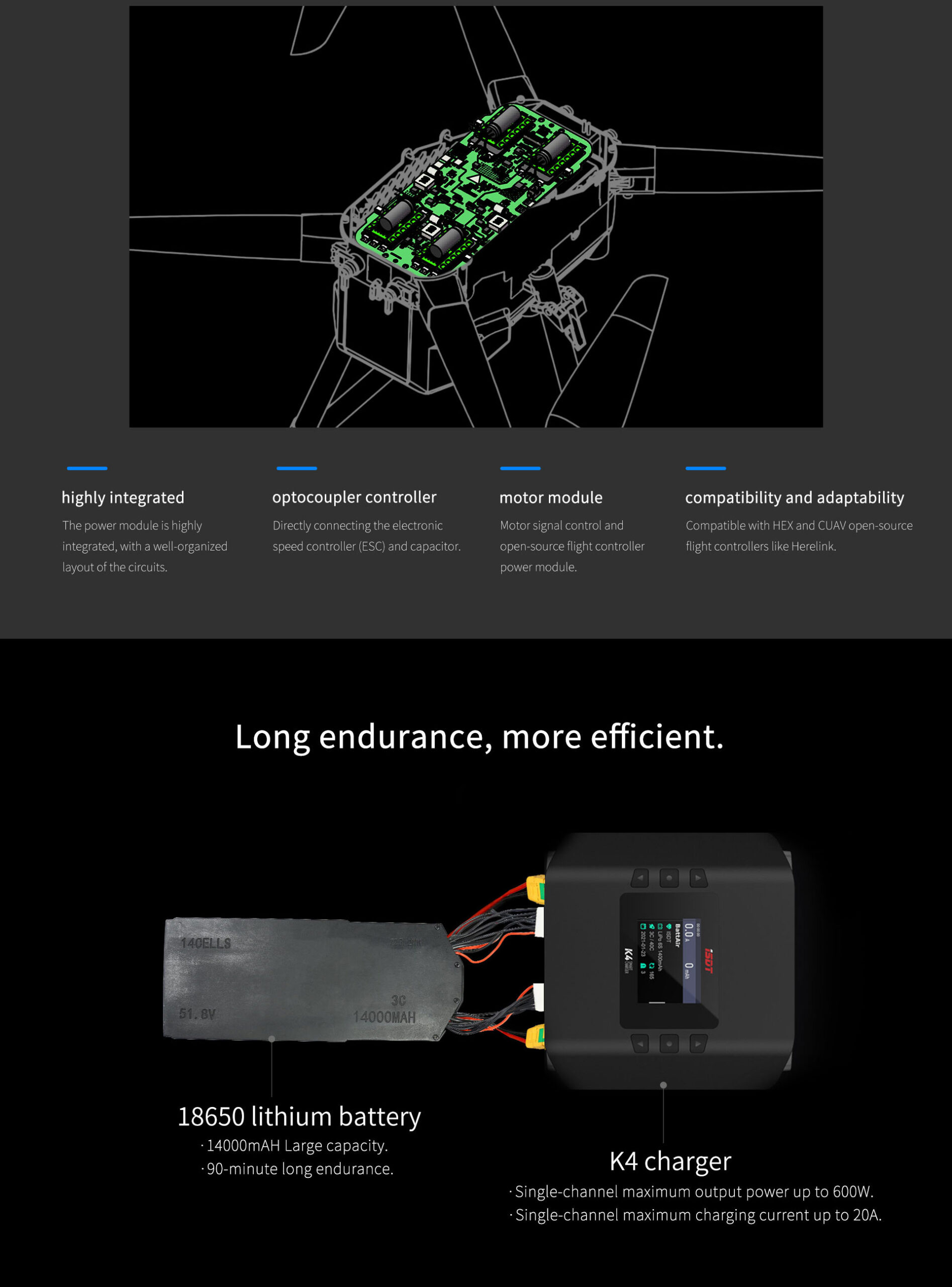

| Battery Capacity | 14S，14000mAh | |
| Battery Weight | ≈2.9kg | |
| Battery Size | 225*89*75mm | |
| Notes: The size and weight may be changed according to customer’s personalized customization requirements. Please refer to the actual object. | ||
