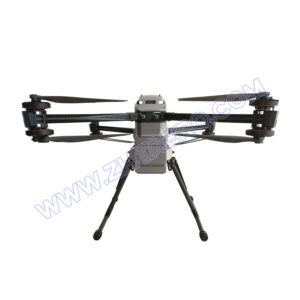

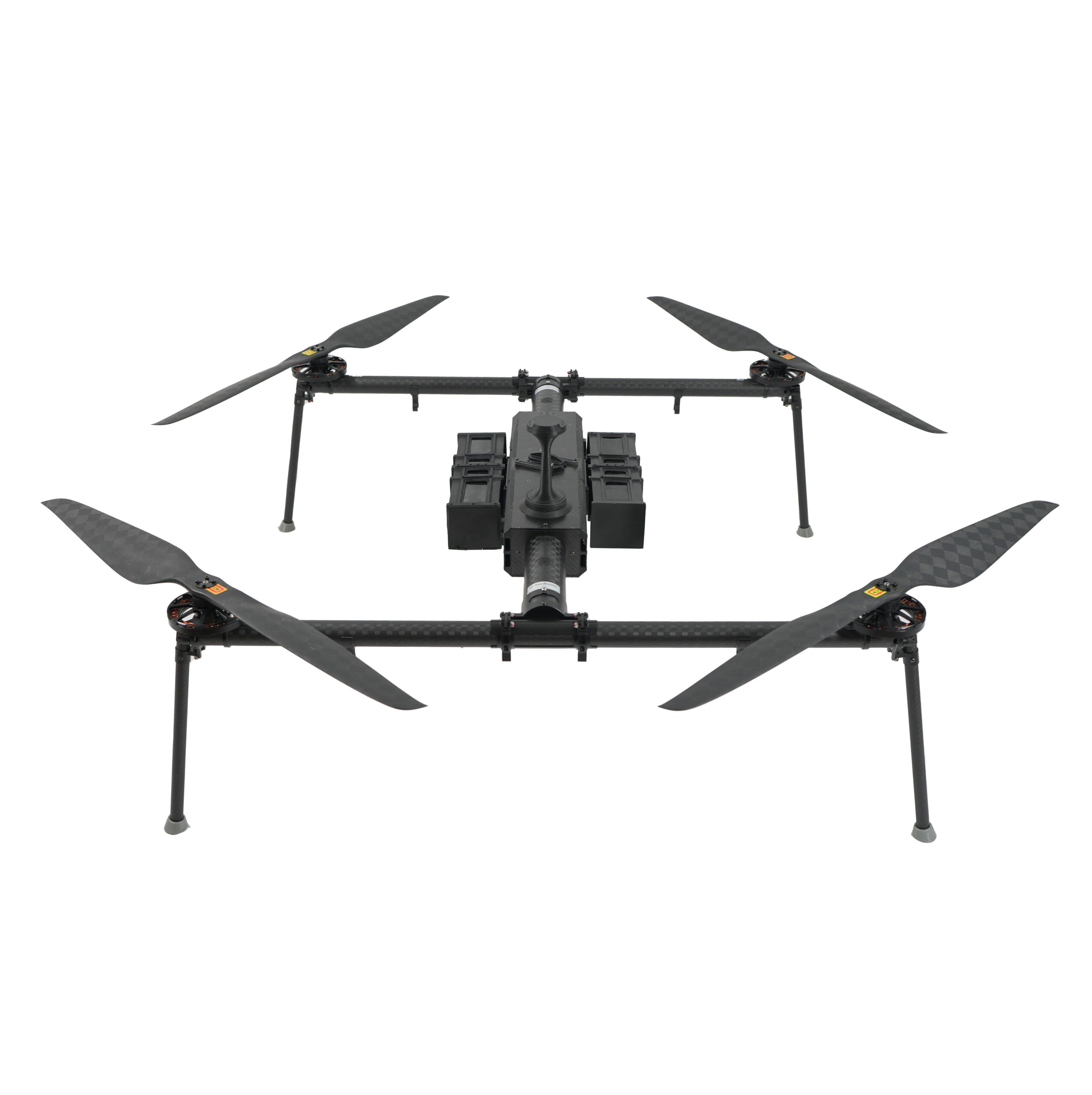

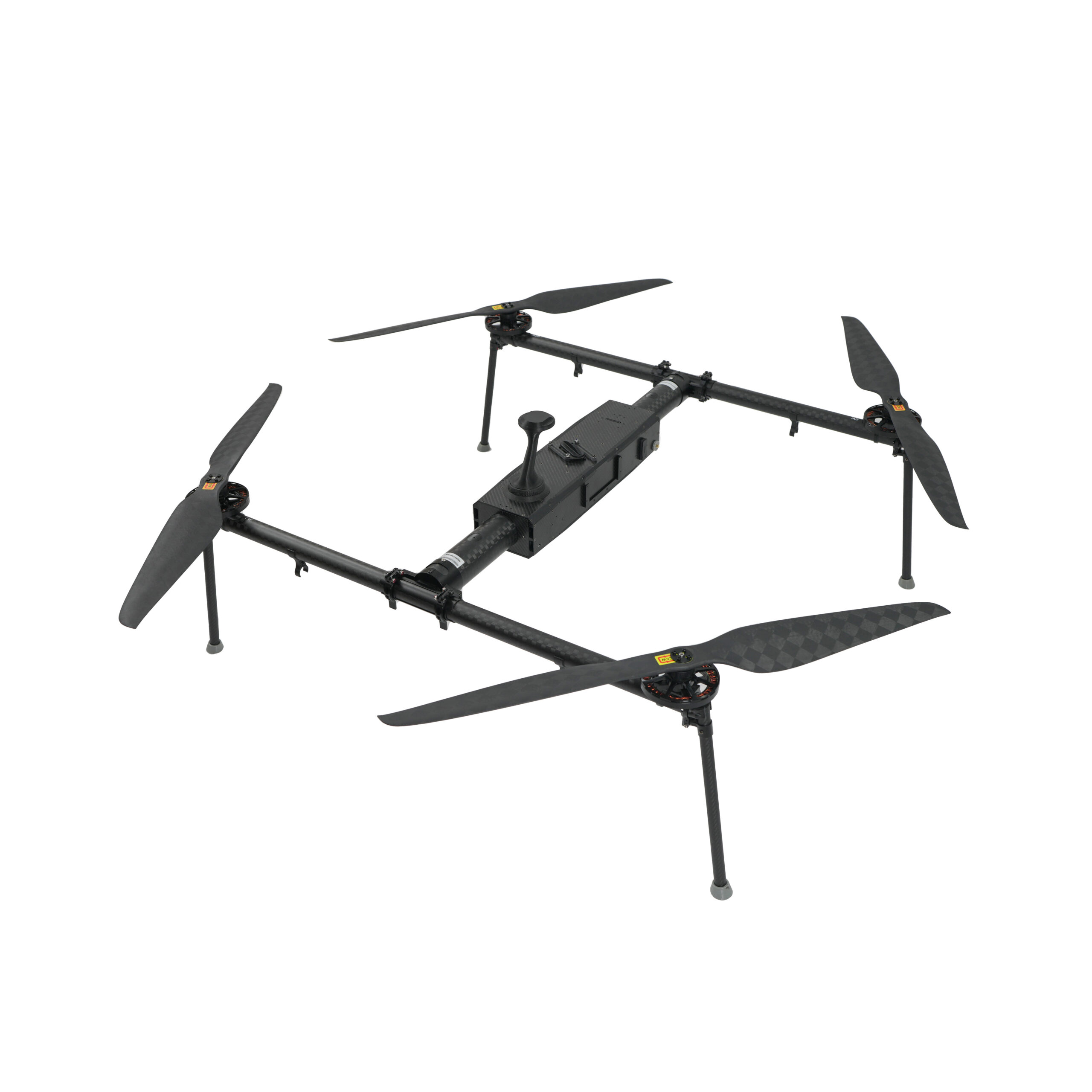

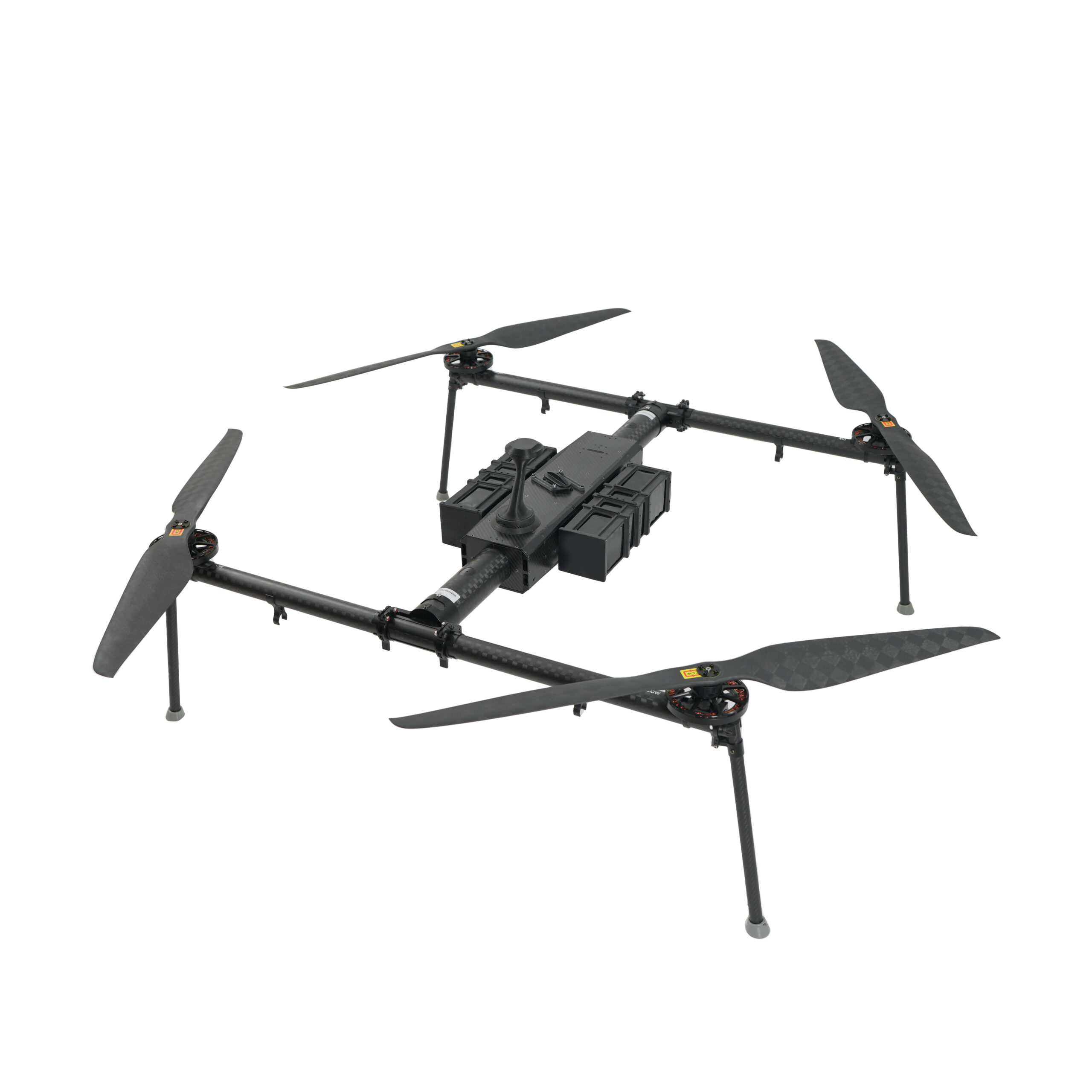

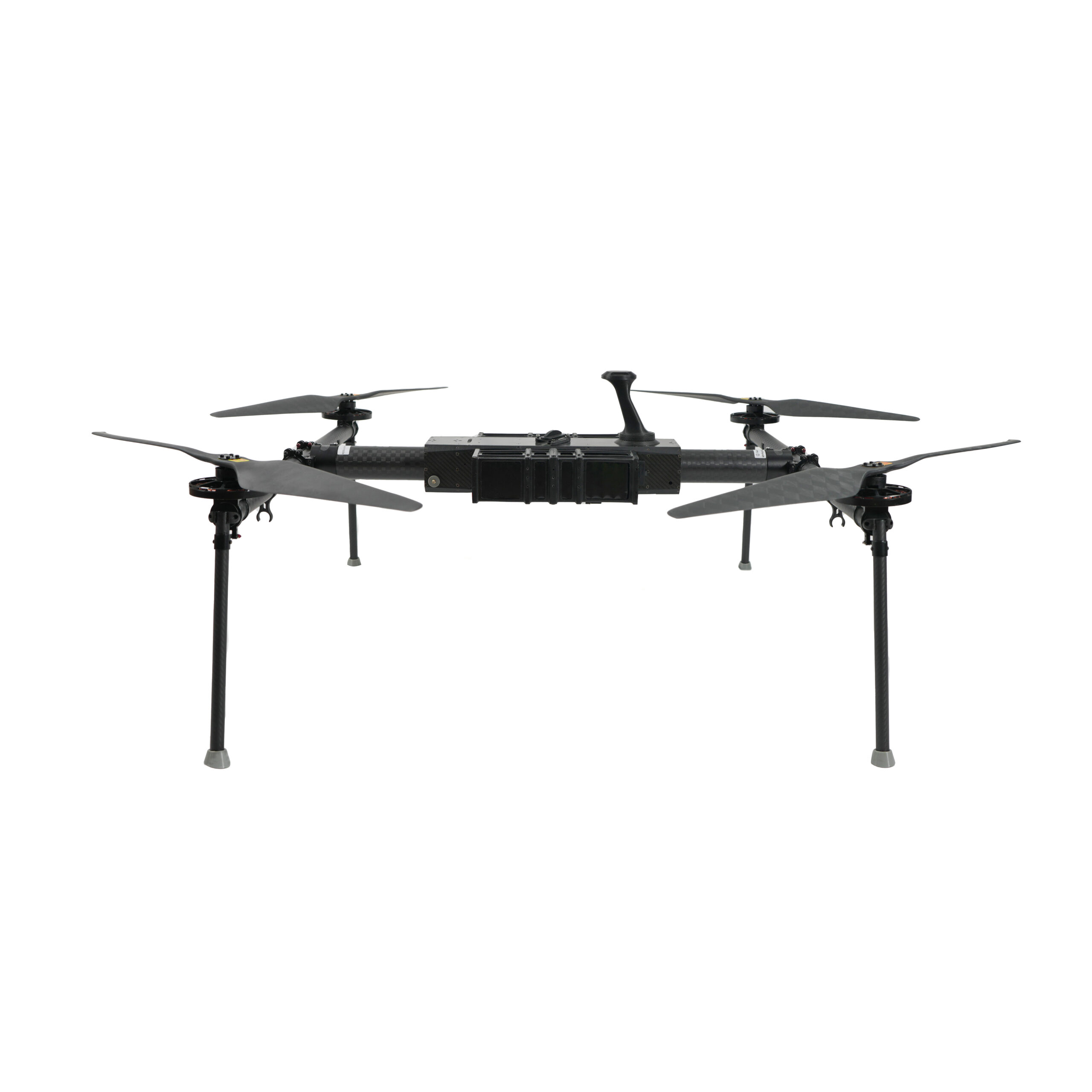

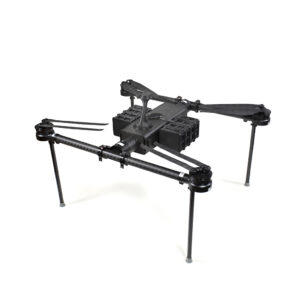

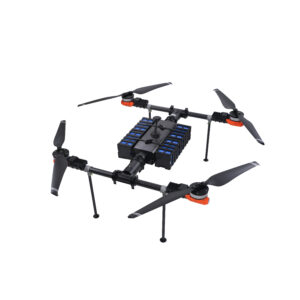

ZHT KEEL Quadcopter Long Endurance RTK Positioning Industrial Drone For Mapping And Inspection
120 Minutes Endurance
10KG Loading Capacity
20KG Max Take-off Weight

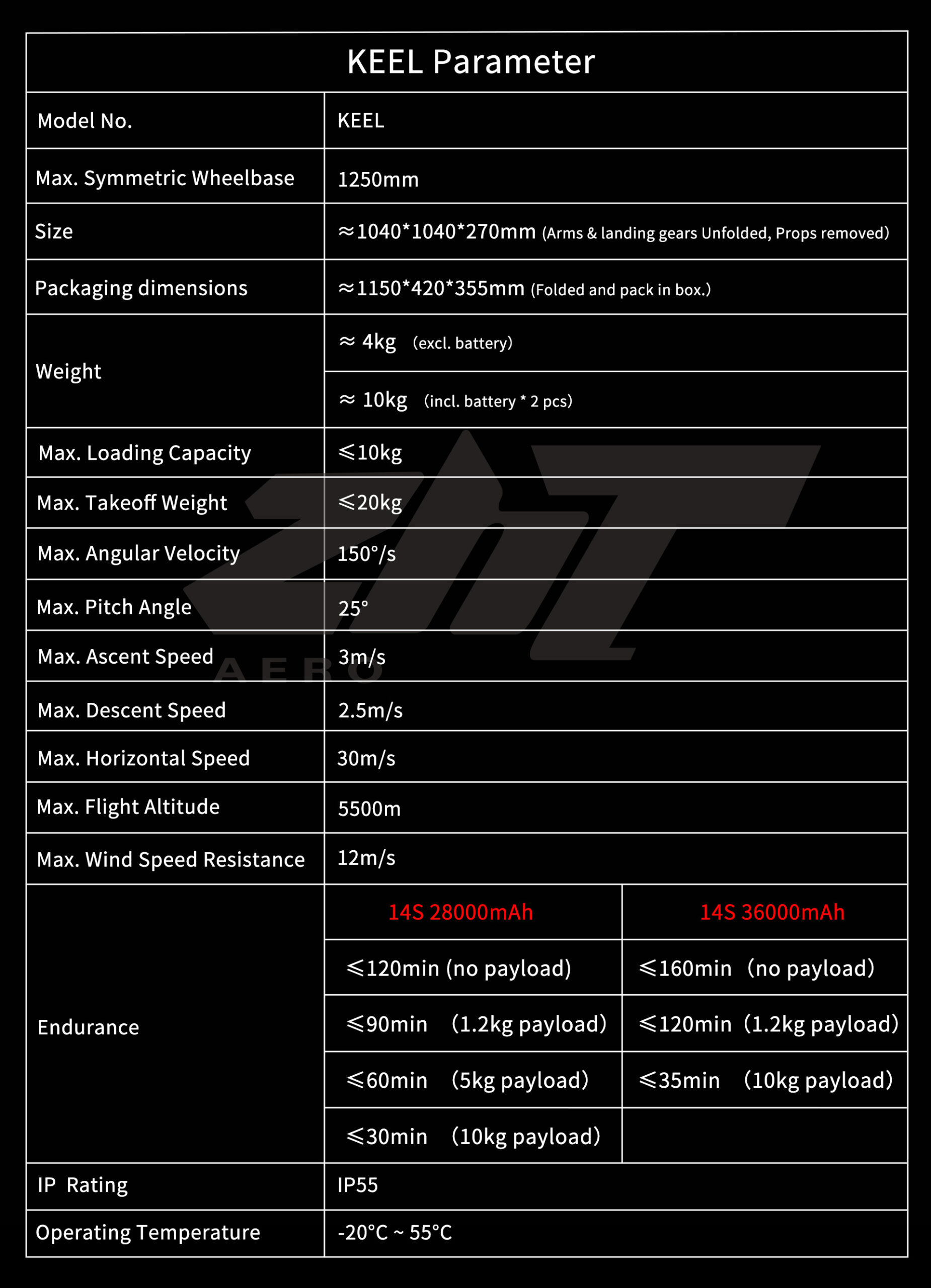

| KEEL PARAMETER | ||
| Model No. | KEEL | |
| Max. Symmetric Wheelbase | 1250mm | |
| Material | Carbon fiber composite and Aircraft Aluminum | |

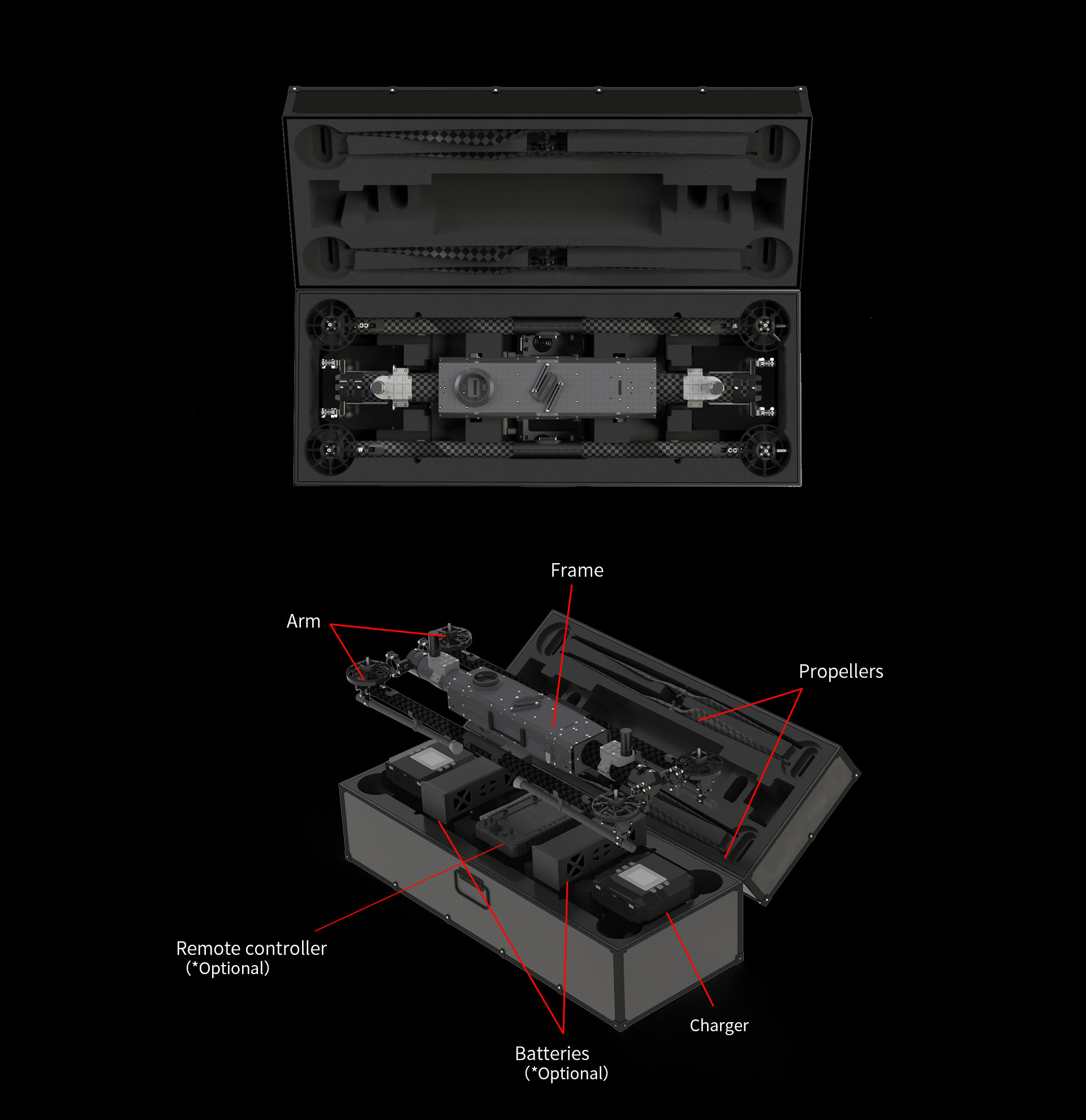

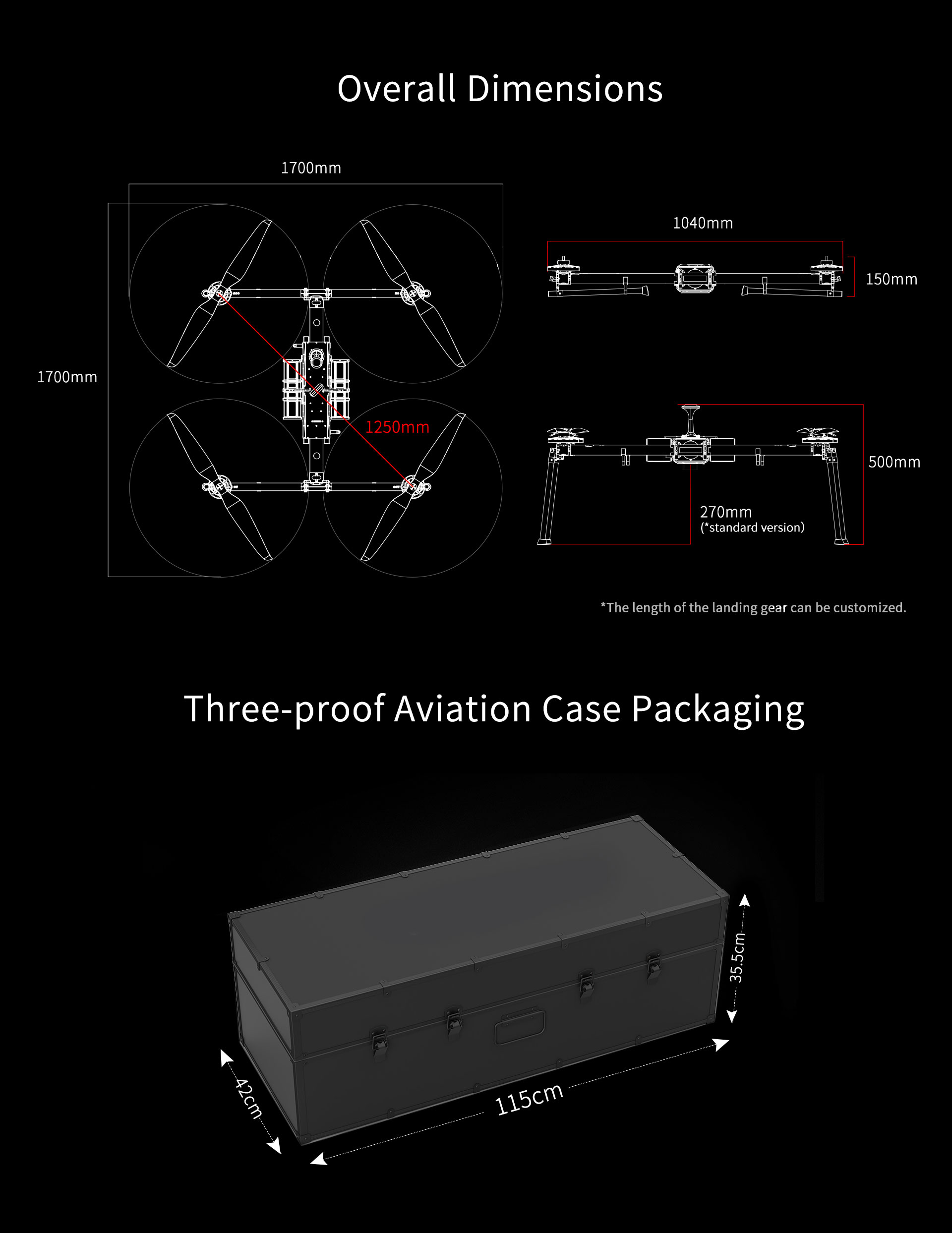

| Size | ≈1040*1040*270 mm (Arms & landing gears Unfolded, Props removed.) ≈1150*420*355 mm (Folded and pack in box.) | |
| Weight | ≈ 4kg（excl. battery） ≈ 10kg（incl. battery * 2 pcs） | |
| Max. Loading Capacity | ≤ 10kg | |
| Max. Takeoff Weight | ≤ 20kg | |
| Endurance | ≤ 120min @ no payload ≤ 90 min @ 1.2kg payload ≤ 60 min @ 5kg payload ≤ 30 min @ 10kg payload | |
| Hovering Accuracy (with moderate or no wind) | vertical ±0.2m； horizontal ±0.1m | |
| Max. Angular Velocity | 150°/s | |
| Max. Pitch Angle | 25° | |
| Max. Ascent Speed | 3m/s | |
| Max. Descent Speed | 2.5m/s | |
| Max. Horizontal Speed | 15m/s | |
| Max. Flight Altitude | 5500m | |
| Max. Wind Speed Resistance | 12m/s | |
| Ingress Protection Rating | IP55 | |
| Operating Temperature | ﹣20℃ ~ +55℃ | |

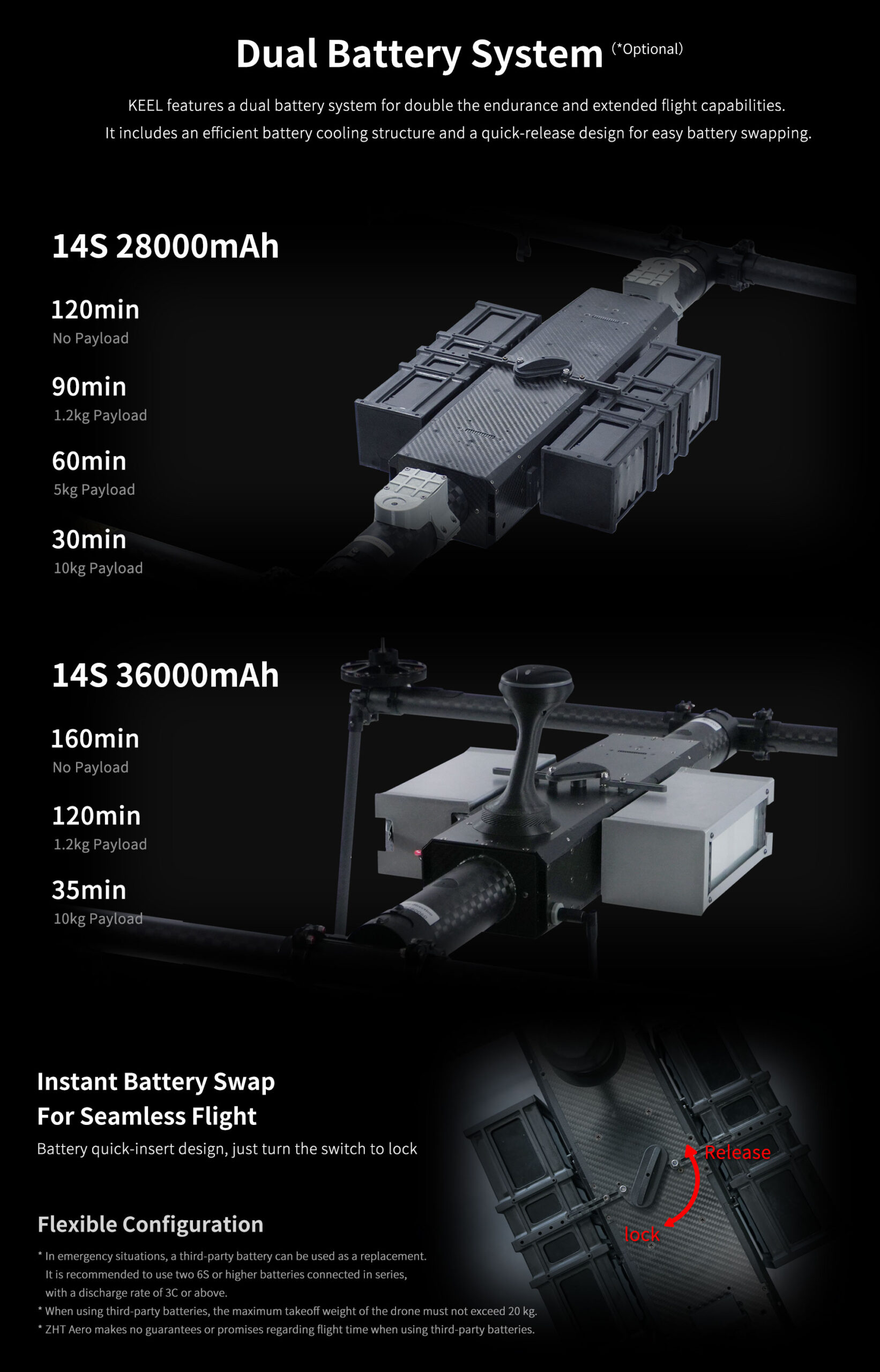

| Battery Capacity | 14S , 28000mAh | |
| Battery Weight | ≈2.9kg | |
| Battery Size | 273*92.5*82.5mm | |
| Notes: The size and weight may be changed according to customer’s personalized customization requirements. Please refer to the actual object. | ||
