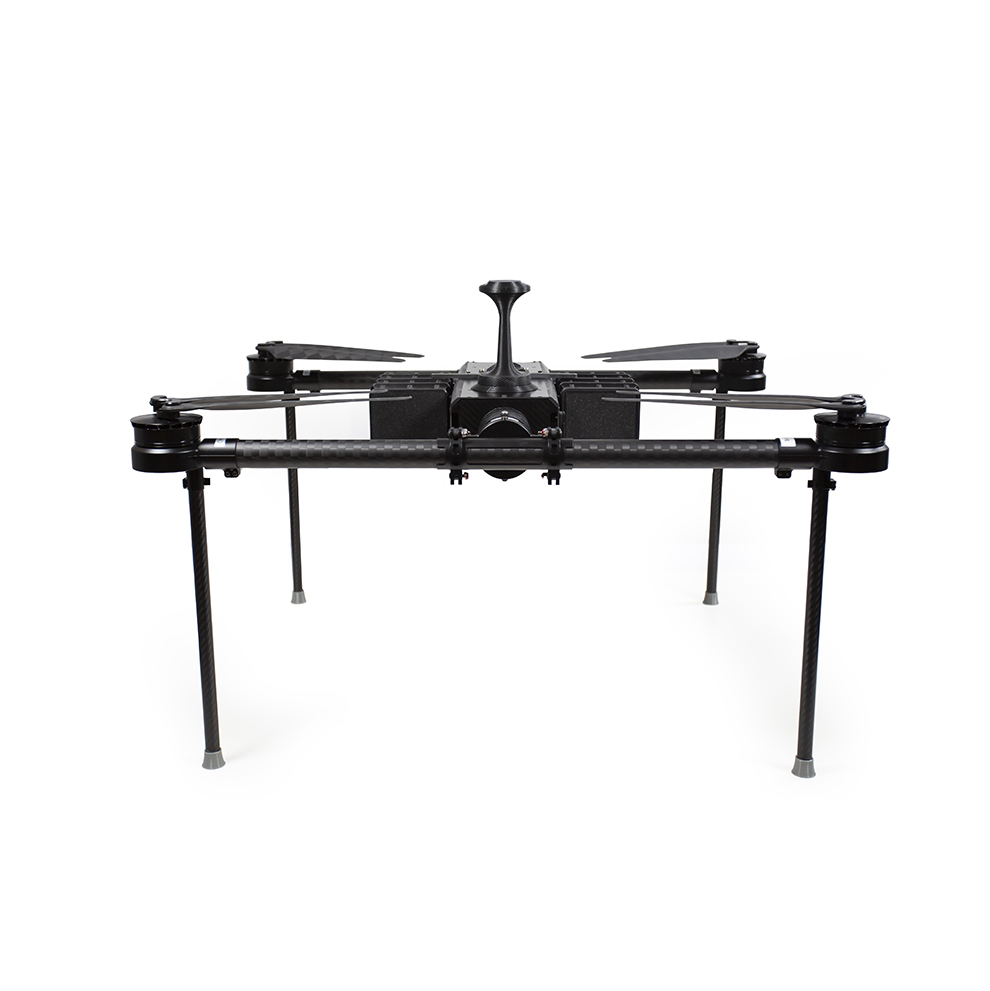

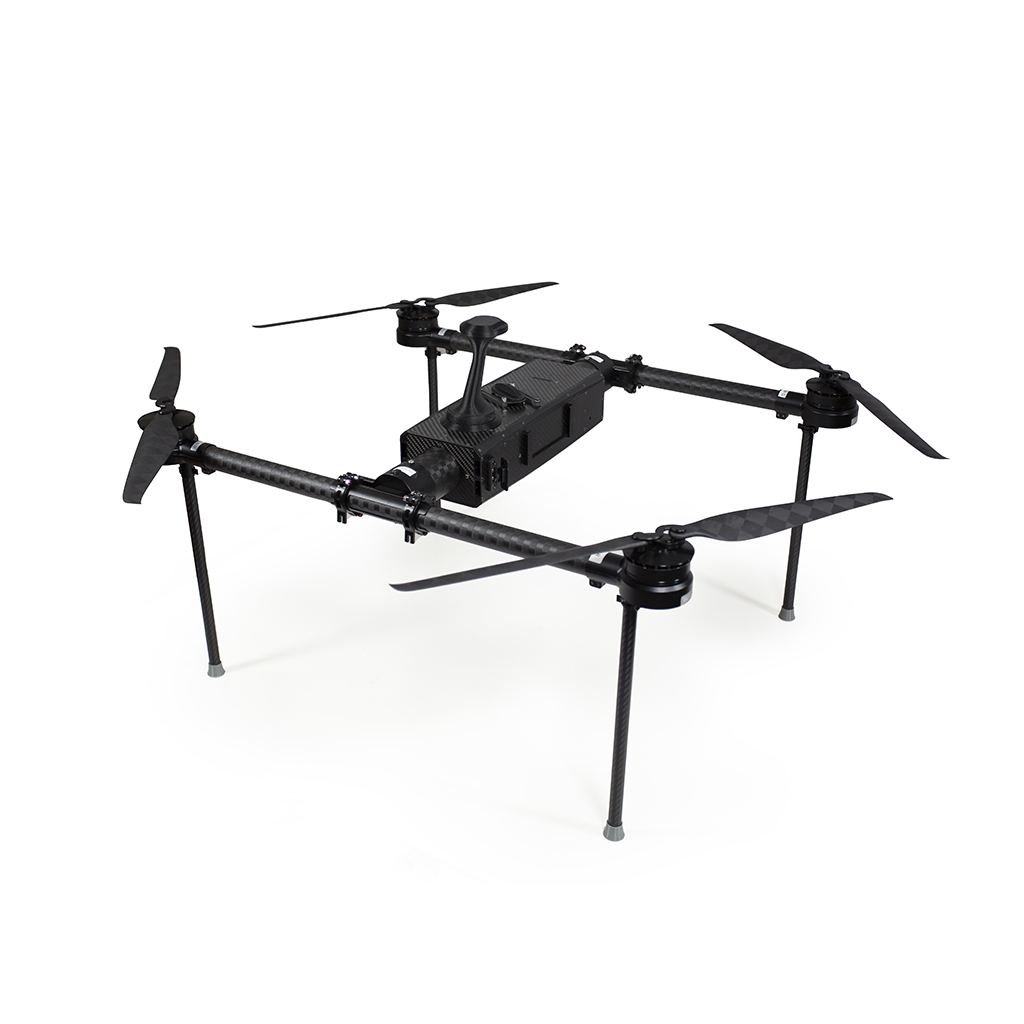

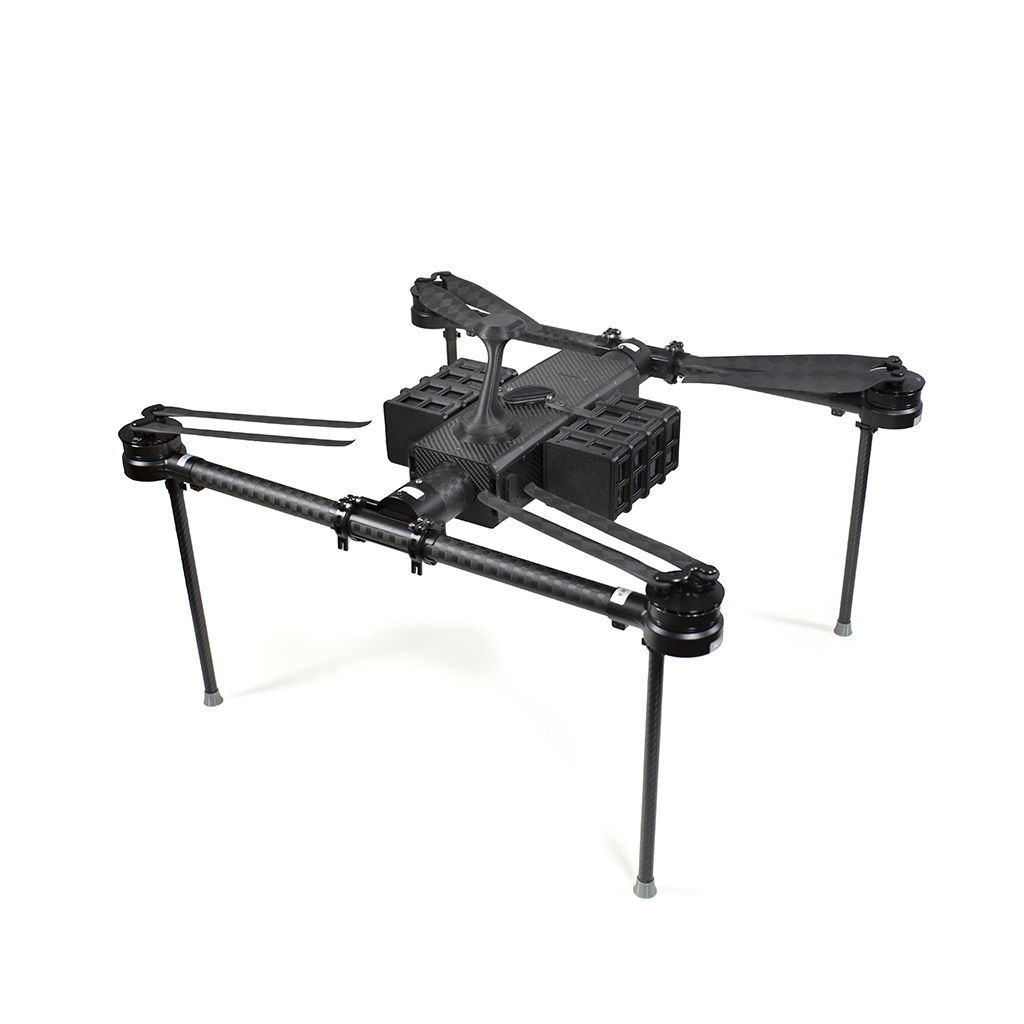

Keel Mini Quadcopter Modular Design Long Endurance Industrial Drone For Mapping And Inspection
70 Minutes Endurance
8KG Loading Capacity
16KG Max Take-off Weight

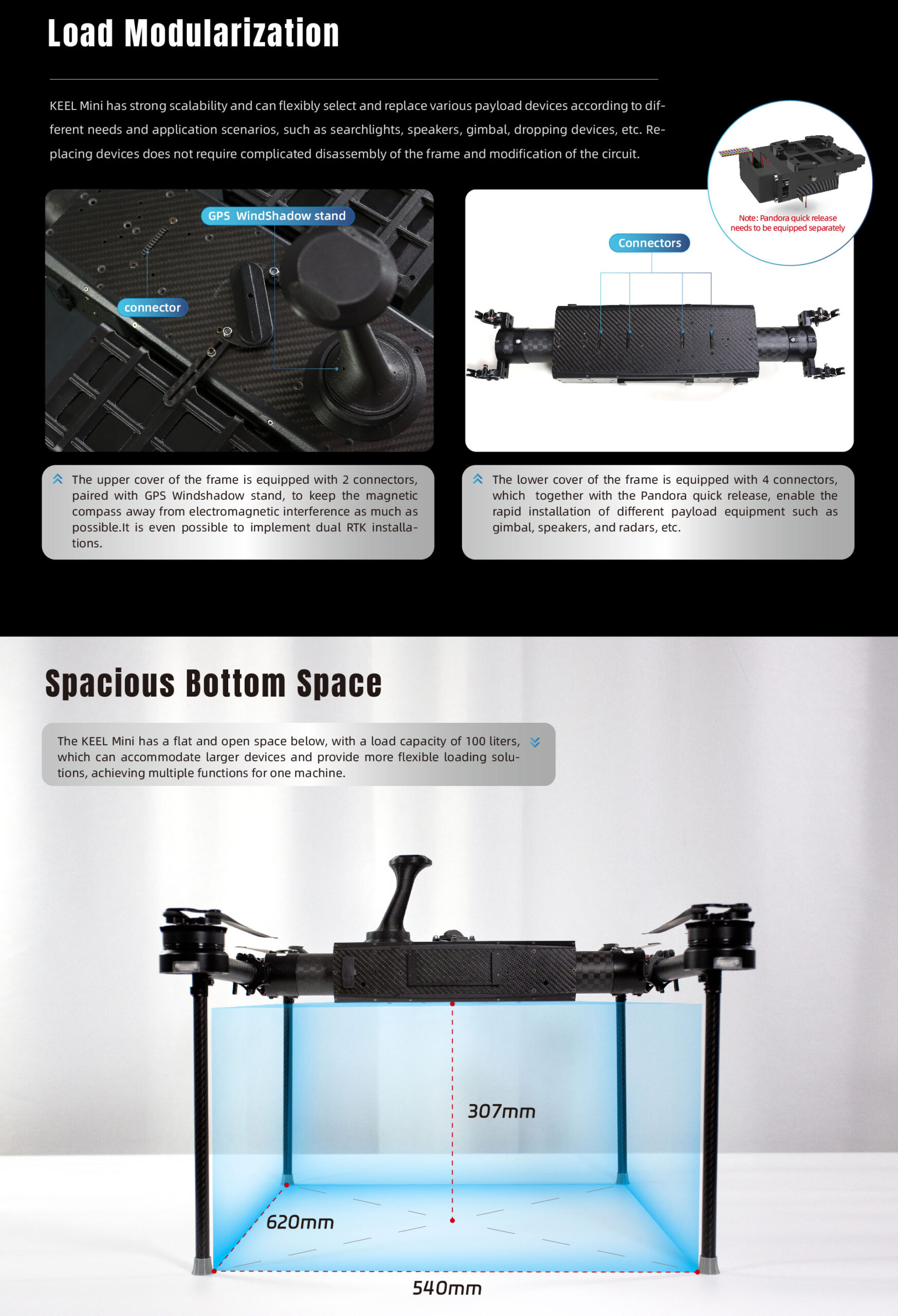

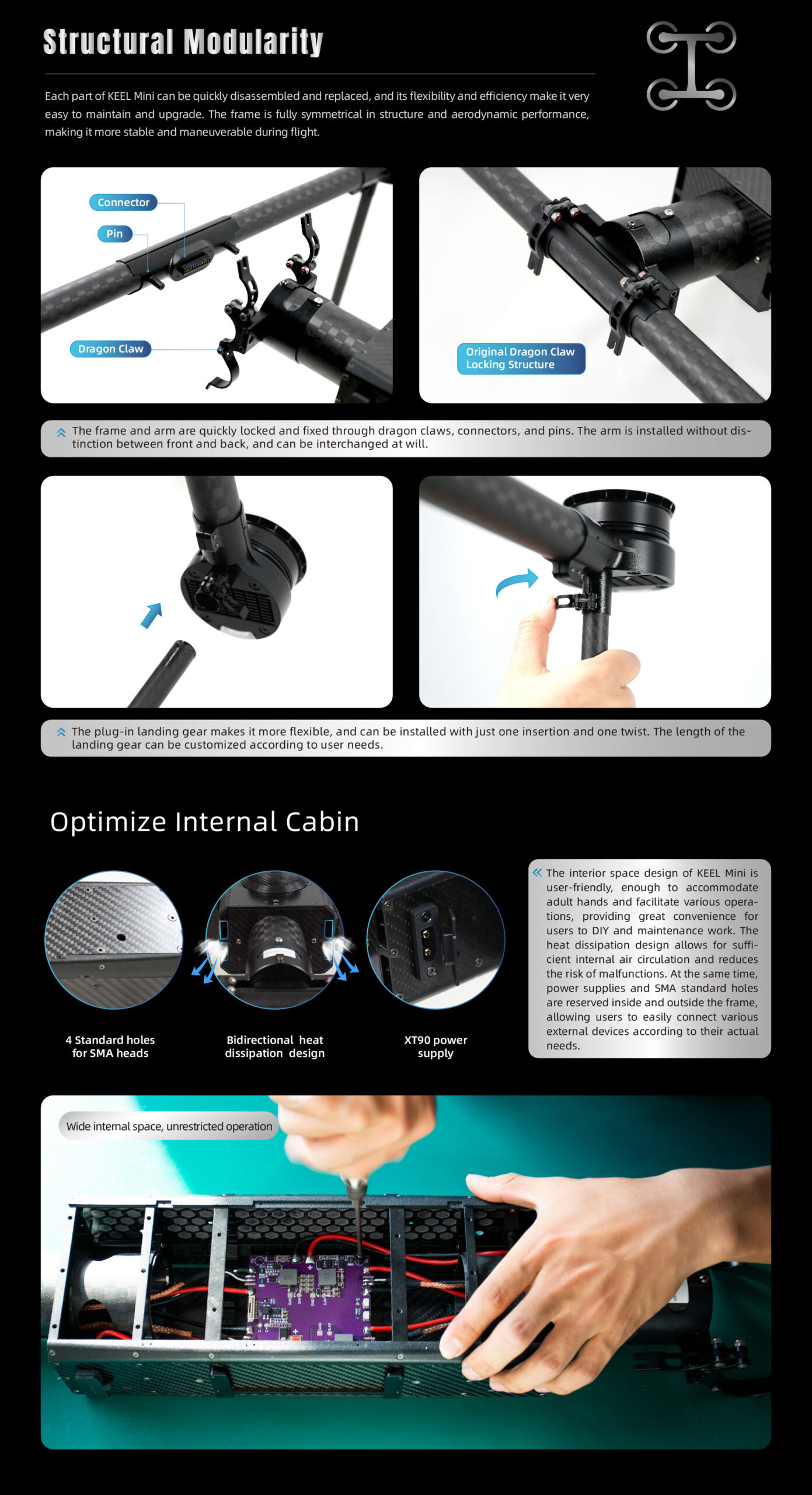

Modular Design
| KEEL MINI PARAMETER | ||
| Model No. | KEEL Mini | |
| Max. Symmetric Wheelbase | 906mm | |

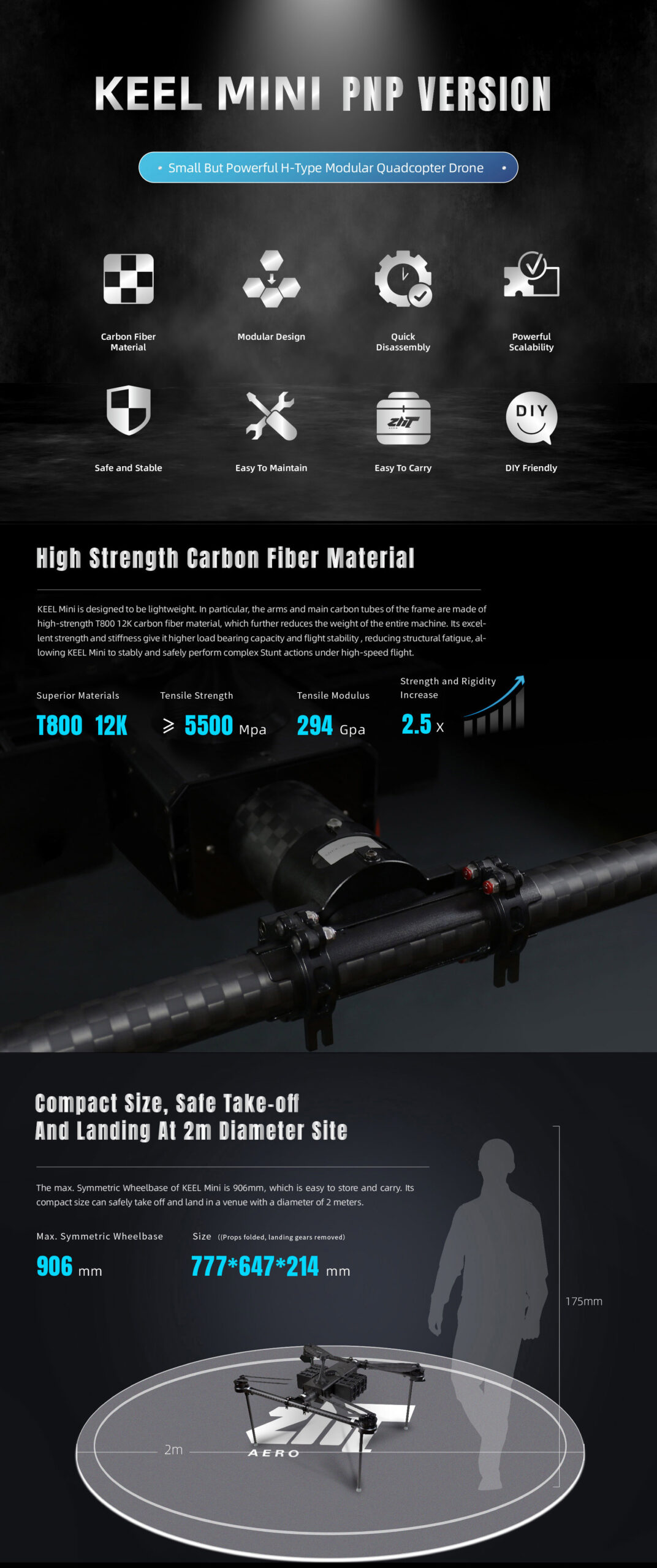

| Material | Carbon fiber composite and Aircraft Aluminum | |

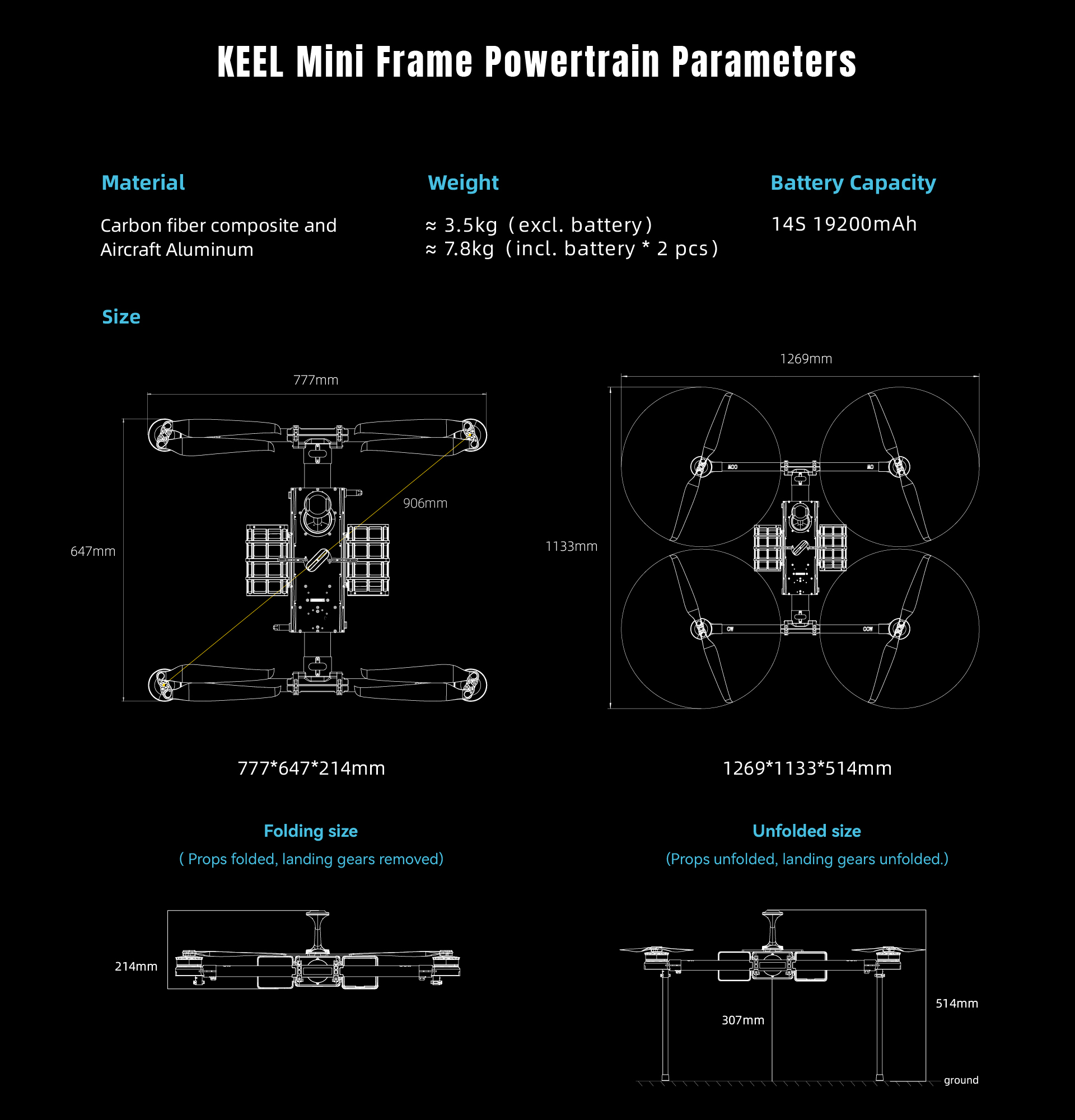

| Size | 777*647*131 mm (Props folded, landing gears removed.) 966*1053*443 mm (Props unfolded, landing gears unfolded. ） | |
| Weight | ≈ 3.7kg（excl. battery） ≈ 7.7kg（incl. battery * 2 pcs） | |
| Max. Loading Capacity | ≤ 8kg | |
| Max. Takeoff Weight | ≤ 16kg | |

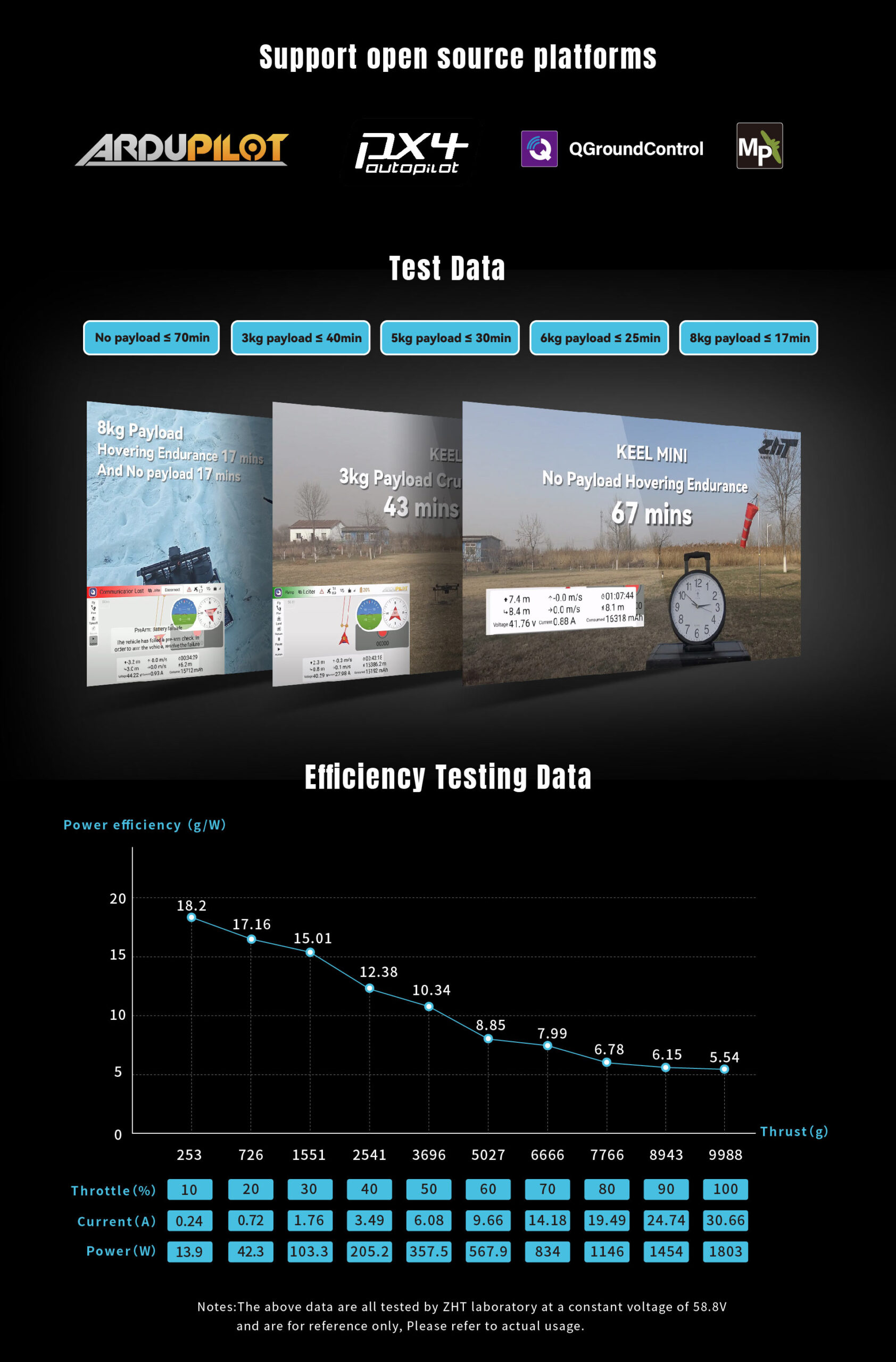

| Endurance | ≤ 70min @ no payload ≤ 40 min @ 3kg payload ≤ 31 min @ 5kg payload ≤ 25 min @ 6kg payload | |
| Hovering Accuracy (with moderate or no wind) | vertical ±0.2m； horizontal ±0.1m | |
| Max. Angular Velocity | 150°/s | |
| Max. Pitch Angle | 25° | |
| Max. Ascent Speed | 3m/s | |
| Max. Descent Speed | 2.5m/s | |

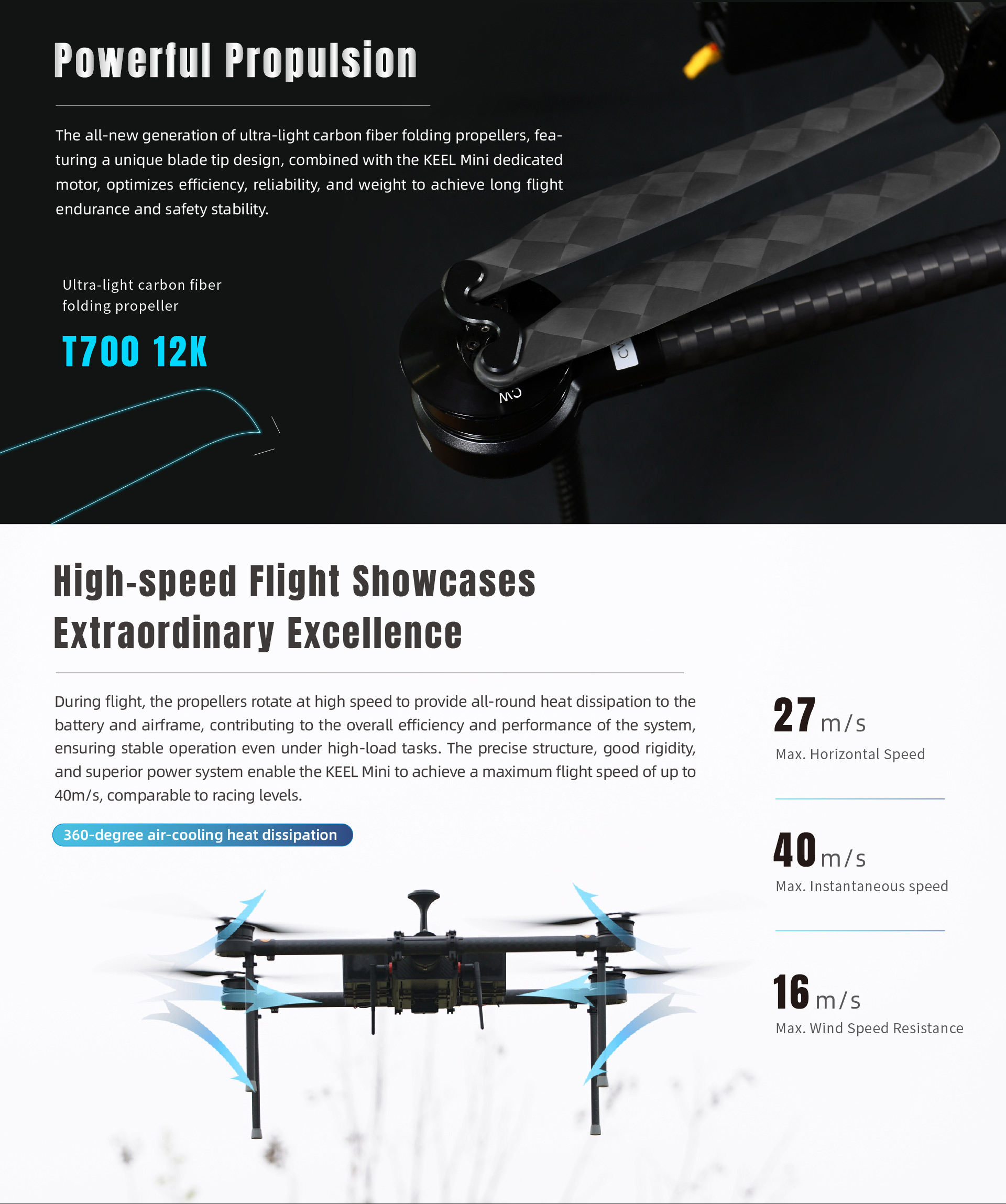

| Max. Horizontal Speed | 27m/s | |
| Max. Flight Altitude | 5500m | |
| Max. Wind Speed Resistance | 16m/s | |
| Ingress Protection Rating | IP55 | |
| Operating Temperature | ﹣20℃ ~ +50℃ | |
| Battery Capacity | 14S , 19200mAh | |
| Battery Weight | 2kg | |
| Battery Size | 150*70*75*mm | |
| Notes: The size and weight may be changed according to customer’s personalized customization requirements. Please refer to the actual object. | ||
